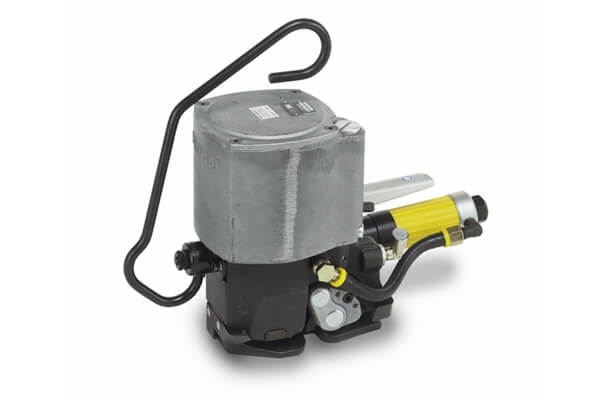

A385
Sizes
| Model | Strap width | Strap thickness (uniflex) | Strap thickness (ultraflex) | Maximum thickness (n) | Maximum tension (n) | Item # |
|---|---|---|---|---|---|---|
| A385/9.5/0.38-0.50/3.3 | 9.5 mm, 3/8“ | 0.38-0.50 mm/.015-.020" | 0.38-0.50 mm/.015-.020" | 3300 | 740 | 13.7010 |
| A385/9.5/0.38-0.50/2.7 | 9.5 mm, 3/8“ | 0.38-0.50 mm/.015-.020" | 0.38-0.50 mm/.015-.020" | 2700 | 610 | 13.7011 |
| A385/10/0.38-0.50/3.3 | 10 mm | 0.38-0.50 mm/.015-.020" | 0.38-0.50 mm/.015-.020" | 3300 | 740 | 13.7020 |
| A385/10/0.38-0.50/2.7 | 10 mm | 0.38-0.50 mm/.015-.020" | 0.38-0.50 mm/.015-.020" | 2700 | 610 | 13.7021 |
| A385/12.7/0.38-0.50/3.3 | 12.7 mm, 1/2" | 0.38-0.50 mm/.015-.020" | 0.38-0.50 mm/.015-.020" | 3300 | 740 | 13.7030 |
| A385/12.7/0.38-0.50/7.0 | 12.7 mm, 1/2" | 0.38-0.50 mm/.015-.020" | 0.38-0.50 mm/.015-.020" | 7000 | 1570 | 13.7031 |
| A385/12.7/0.58-0.63/3.3 | 12.7 mm, 1/2" | 0.58-0.63 mm/.023-.025" | 0.58-0.63 mm/.023-.025" | 3300 | 740 | 13.7032 |
| A385/12.7/0.58-0.63/7.0 | 12.7 mm, 1/2" | 0.58-0.63 mm/.023-.025" | 0.58-0.63 mm/.023-.025" | 7000 | 1570 | 13.7033 |
| A385/12.7/0.38-0.50/2.7 | 12.7 mm, 1/2" | 0.38-0.50 mm/.015-.020" | 0.38-0.50 mm/.015-.020" | 2700 | 610 | 13.7034 |
| A385/12.7/0.38-0.50/4.7 | 12.7 mm, 1/2" | 0.38-0.50 mm/.015-.020" | 0.38-0.50 mm/.015-.020" | 4700 | 1060 | 13.7035 |
| A385/12.7/0.58-0.63/2.7 | 12.7 mm, 1/2" | 0.58-0.63 mm/.023-.025" | 0.58-0.63 mm/.023-.025" | 2700 | 610 | 13.7036 |
| A385/12.7/0.58-0.63/4.7 | 12.7 mm, 1/2" | 0.58-0.63 mm/.023-.025" | 0.58-0.63 mm/.023-.025" | 4700 | 1060 | 13.7037 |
| A385/13/0.38-0.50/3.3 | 13 mm | 0.38-0.50 mm/.015-.020" | 0.38-0.50 mm/.015-.020" | 3300 | 740 | 13.7040 |
| A385/13/0.38-0.50/7.0 | 13 mm | 0.38-0.50 mm/.015-.020" | 0.38-0.50 mm/.015-.020" | 7000 | 1570 | 13.7041 |
| A385/13/0.58-0.63/3.3 | 13 mm | 0.58-0.63 mm/.023-.025" | 0.58-0.63 mm/.023-.025" | 3300 | 740 | 13.7042 |
| A385/13/0.58-0.63/7.0 | 13 mm | 0.58-0.63 mm/.023-.025" | 0.58-0.63 mm/.023-.025" | 7000 | 1570 | 13.7043 |
| A385/13/0.38-0.50/2.7 | 13 mm | 0.38-0.50 mm/.015-.020" | 0.38-0.50 mm/.015-.020" | 2700 | 610 | 13.7044 |
| A385/13/0.38-0.50/4.7 | 13 mm | 0.38-0.50 mm/.015-.020" | 0.38-0.50 mm/.015-.020" | 4700 | 1060 | 13.7045 |
| A385/13/0.58-0.63/2.7 | 13 mm | 0.58-0.63 mm/.023-.025" | 0.58-0.63 mm/.023-.025" | 2700 | 610 | 13.7046 |
| A385/13/0.58-0.63/4.7 | 13 mm | 0.58-0.63 mm/.023-.025" | 0.58-0.63 mm/.023-.025" | 4700 | 1060 | 13.7047 |
| A385/16/0.38-0.50/3.3 | 16 mm, 5/8" | 0.38-0.50 mm/.015-.020" | 0.38-0.50 mm/.015-.020" | 3300 | 740 | 13.7050 |
| A385/16/0.38-0.50/7.0 | 16 mm, 5/8" | 0.38-0.50 mm/.015-.020" | 0.38-0.50 mm/.015-.020" | 7000 | 1570 | 13.7051 |
| A385/16/0.58-0.63/3.3 | 16 mm, 5/8" | 0.58-0.63 mm/.023-.025" | 0.58-0.63 mm/.023-.025" | 3300 | 740 | 13.7052 |
| A385/16/0.58-0.63/7.0 | 16 mm, 5/8" | 0.58-0.63 mm/.023-.025" | 0.58-0.63 mm/.023-.025" | 7000 | 1590 | 13.7053 |
| A385/16/0.38-0.50/2.7 | 16 mm, 5/8" | 0.38-0.50 mm/.015-.020" | 0.38-0.50 mm/.015-.020" | 2700 | 610 | 13.7054 |
| A385/16/0.38-0.50/4.7 | 16 mm, 5/8" | 0.38-0.50 mm/.015-.020" | 0.38-0.50 mm/.015-.020" | 4700 | 1060 | 13.7055 |
| A385/16/0.58-0.63/2.7 | 16 mm, 5/8" | 0.58-0.63 mm/.023-.025" | 0.58-0.63 mm/.023-.025" | 2700 | 610 | 13.7056 |
| A385/16/0.58-0.63/4.7 | 16 mm, 5/8" | 0.58-0.63 mm/.023-.025" | 0.58-0.63 mm/.023-.025" | 4700 | 1060 | 13.7057 |
| A385/19/0.50-0.63/3.3 | 19 mm, 3/4" | 0.50-0.63 mm/.020-.025" | 0.50-0.63 mm/.020-.025" | 3300 | 740 | 13.7060 |
| A385/19/0.50-0.63/7.0 | 19 mm, 3/4" | 0.50-0.63 mm/.020-.025" | 0.50-0.63 mm/.020-.025" | 7000 | 1570 | 13.7061 |
| A385/19/0.50-0.63/2.7 | 19 mm, 3/4" | 0.50-0.63 mm/.020-.025" | 0.50-0.63 mm/.020-.025" | 2700 | 610 | 13.7062 |
| A385/19/0.50-0.63/4.7 | 19 mm, 3/4" | 0.50-0.63 mm/.020-.025" | 0.50-0.63 mm/.020-.025" | 4700 | 1060 | 13.7063 |
| A385/20/0.50-0.63/3.3 | 20 mm | 0.50-0.63 mm/.020-.025" | 0.50-0.63 mm/.020-.025" | 3300 | 740 | 13.7070 |
| A385/20/0.50-0.63/7.0 | 20 mm | 0.50-0.63 mm/.020-.025" | 0.50-0.63 mm/.020-.025" | 7000 | 1570 | 13.7071 |
| A385/20/0.50-0.63/2.7 | 20 mm | 0.50-0.63 mm/.020-.025" | 0.50-0.63 mm/.020-.025" | 2700 | 610 | 13.7072 |
| A385/20/0.50-0.63/4.7 | 20 mm | 0.50-0.63 mm/.020-.025" | 0.50-0.63 mm/.020-.025" | 4700 | 1060 | 13.7073 |
Brackets
| Description | Item # |
|---|---|
| Combination suspension bracket for standard, vertical and horizontal application | A38.3401 |
