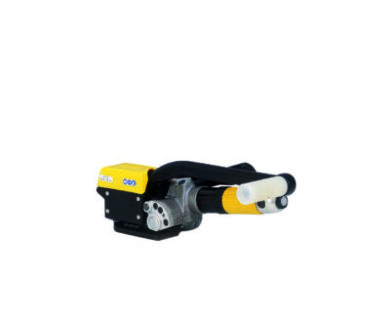

A391
Sizes
| Model | Strap width | Strap thickness (uniflex) | Strap thickness (ultraflex) | Maximum thickness (n) | Maximum tension (n) | Item # |
|---|---|---|---|---|---|---|
| A391/12.7/0.38-0.58 | 12.7 mm, 1/2" | - - - | 0.38-0.58 mm/.015-.023" | 6000 | 1350 | 13.527 |
| A391/13/0.38-0.58 | 13 mm | - - - | 0.38-0.58 mm/.015-.023" | 6000 | 1350 | 13.528 |
| A391/16/0.38-0.58 | 16 mm, 5/8" | - - - | 0.38-0.58 mm/.015-.023" | 6000 | 1350 | 13.529 |
| A391/19/0.38-0.58 | 19 mm, 3/4", | - - - | 0.38-0.58 mm/.015-.023" | 6000 | 1350 | 13.531 |
Brackets
| Description | Item # |
|---|---|
| Bolt for horizontal application (only in combination with grip ball N4.1116) | A33.4101 |
| Grip ball for horizontal application (in combination with bolt A33.4101) | N4.1116 |
